Rim Joist Spray Foam Insulation in Wilmington, NC
Air sealing and thermal-envelope support at the rim and band joist perimeter of Wilmington-area homes — a focused detail that can help reduce uncontrolled air leakage at the floor edge.
How Spray Foam Insulation Works at Rim Joists
A rim joist — also called a band joist or band board — is the perimeter framing at the edge of a floor system, sitting above the foundation wall and closing the ends of the floor joists. Because it sits at the building perimeter, it often contains gaps, joints, and utility penetrations that can contribute to uncontrolled air leakage between the exterior and the floor system or crawl space.

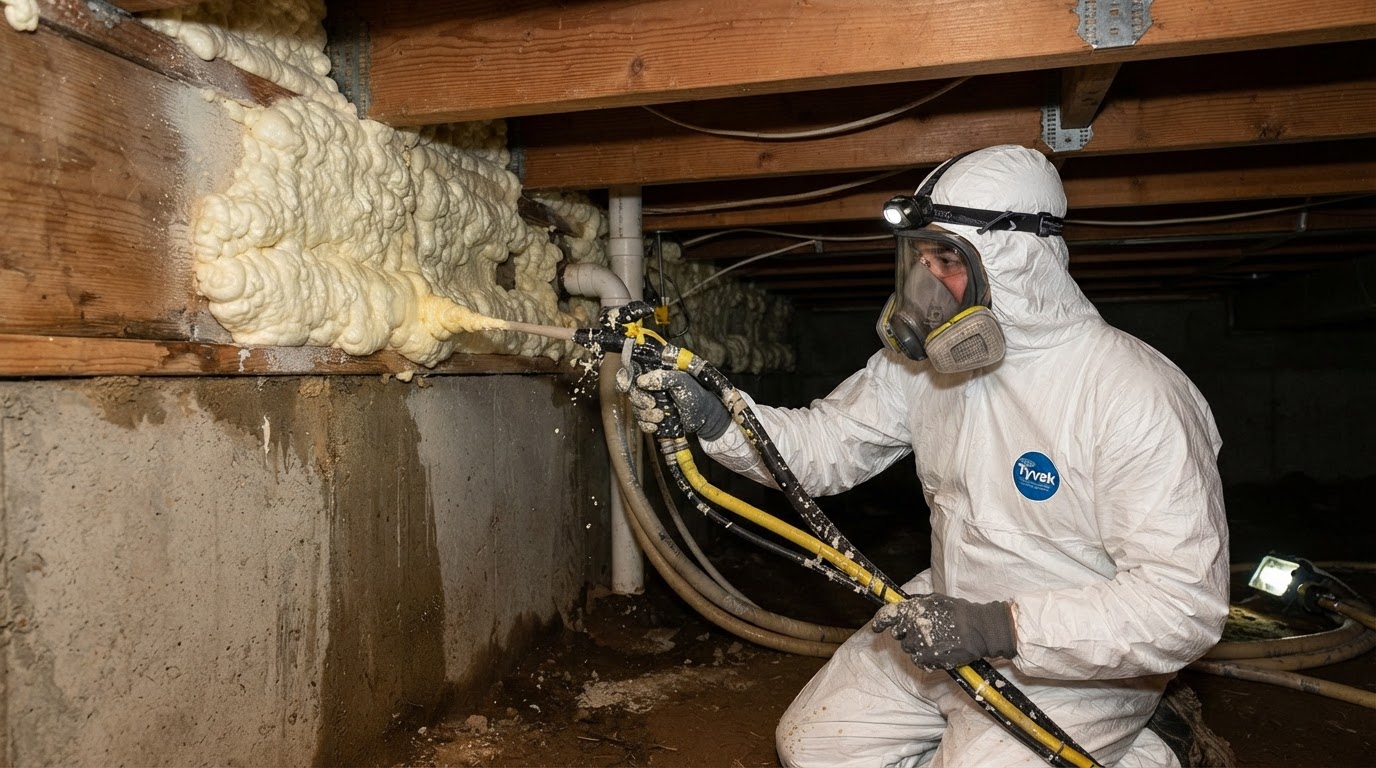

Spray foam is applied to accessible rim and band joist areas where it expands to fill irregular joints, seal around penetrations, and create a continuous layer of insulation combined with air sealing. Application is common in crawl spaces, accessible foundation areas, new construction, and existing homes where the perimeter framing is exposed. The approach depends on the assembly, access, and existing conditions.
Rim-joist spray foam is often a focused detail rather than a whole-home insulation solution by itself. It can be part of a broader crawl-space or building-envelope project. A project-specific evaluation determines which rim and band areas are accessible and whether spray foam fits the overall strategy.
Why Wilmington Homes May Benefit From Rim Joist Air Sealing
Air movement around the floor perimeter is a common source of uncontrolled air leakage in Wilmington-area homes. Rim and band joists often contain gaps and penetrations that allow humid coastal air to move into the floor system or crawl space. Spray foam, when properly specified and installed, can help reduce that air leakage and support building-envelope continuity at the perimeter.
Floor Perimeters
Rim and band joists at the edge of the floor system are a common air-leakage detail.
Crawl-Space Framing
Accessible crawl-space perimeters can be air sealed where framing is exposed.
Band Boards
Band boards above foundation walls often contain joints and penetrations.
Utility Penetrations
Gaps around plumbing and wiring penetrations can be sealed with expanding foam.
Exterior Wall Transitions
The floor-to-wall connection is a common location for air leakage.
Floor-to-Wall Connections
Sealing the perimeter can support continuity between the floor and wall assemblies.
Rim-joist spray foam is insulation and air sealing — it does not fix foundation water intrusion, plumbing leaks, bulk-water entry, or structural damage. Those conditions must be addressed separately before insulation is applied. Coastal humidity is a real factor in southeastern North Carolina, but foam alone does not resolve crawl-space moisture problems.
Open-Cell vs. Closed-Cell Spray Foam for Rim Joists
Closed-cell spray foam is often considered in some rim-joist applications because of its higher density, rigidity, and lower vapor permeance relative to open-cell, but it is not universally required. The right choice depends on the assembly design, moisture and vapor considerations, access, foam characteristics, project goals, and existing conditions.
Open-Cell at Rim Joists
- Lower-density foam that expands significantly to fill irregular joints and gaps
- Air-sealing function that can help reduce uncontrolled air leakage at the perimeter
- Higher vapor permeance relative to closed-cell products
- May be considered where a vapor barrier is not the primary objective
Closed-Cell at Rim Joists
- Higher density and rigidity relative to open-cell
- Lower vapor permeance, useful at perimeter framing where moisture is a concern
- Often considered for crawl-space-adjacent rim and band areas
- May be part of a properly designed moisture strategy at the floor perimeter
Not sure which spray foam fits your project?
Call (910) 909-4411Rim Joist Spray Foam Installation Near Wilmington: Project Process
A rim-joist spray foam project starts with identifying accessible perimeter framing and reviewing crawl-space or floor conditions. Because rim and band areas sit at the building perimeter, access and substrate condition are evaluated before any recommendation is made.
1. Identify Accessible Rim & Band Areas
We review which rim and band joist areas are accessible from the crawl space or foundation perimeter.
2. Review Crawl-Space or Floor Conditions
Existing framing, substrate condition, and any obvious moisture are evaluated before any recommendation.
3. Identify Penetrations & Gaps
Obvious penetrations, joints, and gaps around utilities are identified for potential sealing.
4. Determine Application Approach
Open-cell, closed-cell, or another appropriate approach is considered based on the assembly and moisture strategy.
5. Preparation & Application
The area is prepared with safe application conditions and spray foam is applied to the accessible rim and band areas.
6. Final Review
Completed work and applicable project details are reviewed with the property owner.
Related Spray Foam Services
Want to talk it through first?
Rim Joist Spray Foam Insulation FAQs
Need Rim Joist Spray Foam Insulation in Wilmington?
If you are planning a crawl-space project or want to address air leakage at the floor perimeter, we can help evaluate whether rim-joist spray foam fits your overall building-envelope strategy. Property owners and builders are welcome to discuss their project.
